Manifold Fittings

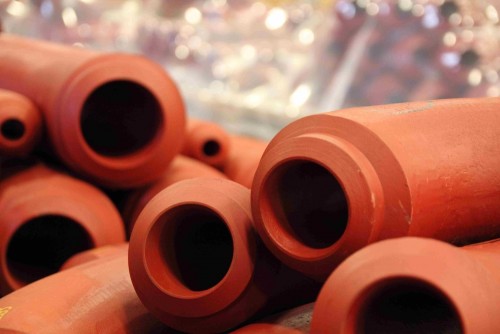

Triumph Oilfiled and manufactures 4130 long sweep and 3D double back style manifold fittings. They are used for full-flow applications such as cement and mud systems, where a minimum pressure drop is required. The fittings are designed to withstand erosion from these fast-flow conditions.
All of our high pressure manifold fittings are forged from AISI 4130 grade low-alloy steel, to guarantee high yield strength. They are suitable for high-pressure service of between 5,000psi and 20,000psi working pressure, depending on wall thickness.
All forgings are fully in accordance with NACE MR-0175/ISO15156 and are supplied with BS EN 10204 3.2 certification. The entire supply chain is certified to ISO 9001, with the materials forged in Western Europe. Triumph Oilfiled’s manifold fittings also come with ABS independent design review certificates, and are fully in compliance with ABS/CDS rules. DNV or other third party certification is available upon request.
We have a wide range of fitting types and sizes available from stock, with special configurations and non-standard sizes supplied on request.
Browse all of our manifold fittings below and enquire now for prices and availability.
Manifolds

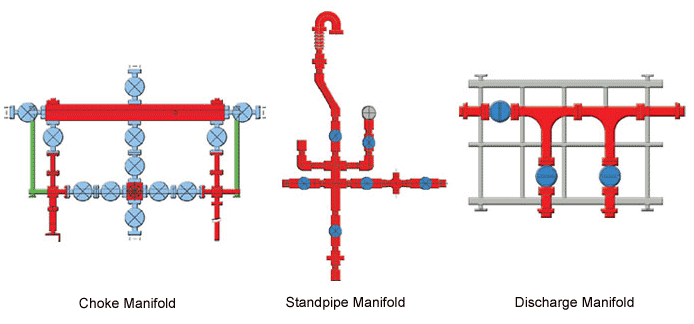

Triumph Oilfiled, assemble and supply a range of manifolds for use in high pressure drilling systems.

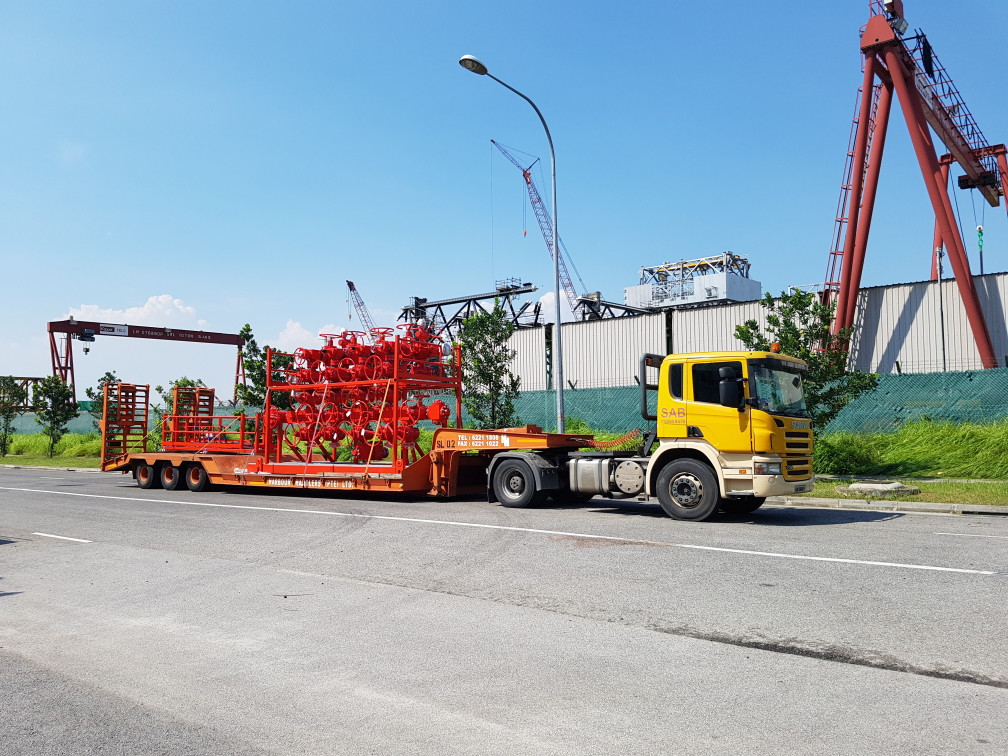

We have supplied manifold systems to drilling contractors and shipyards worldwide, for use in everything from jack-up rigs to semi-submersible rigs, drillships and land rigs. We also design and supply additional equipment, including control consoles and mud gas separators.
Enquire about our fantastic collection of manifolds online now for further details about pricing and availability in your region.
High Pressure Piping and Manifold Fittings
We Triumph Oilfiled Products are one of the major supplier of high pressure pipings with AISI 4130 materials of different scheules from 2”to 6” in sizes and our specilly designed Manifold Fittings are suitably utilized for the pipe fitting applications in oil, gas, petrochemical, food processing and pharmaceutical industries.
We are one of the major manufacturer and supplier of forged high pressure manifold fittings of different sizes and ratings across the globe.
Available standard 4130 pipe sizes
| Pipe Size | Schedule | OD mm | ID mm | Thickness mm |
|---|---|---|---|---|
| 2” | XXS | 60.3 | 38.10 | 11.11 |
| 3” | XXS | 88.9 | 58.42 | 15.24 |
| 4” | XXS | 114.3 | 80.01 | 17.145 |
| 5” | XXS | 141.3 | 103.1 | 19.10 |
All materials are supplied as per API 6A standard and meet the requirements of NACE MR0175 along with all necessary material certificates, Furnace calibartion certificates ,NDT certificates, hardness test report, Chemical analysis reports etc.
